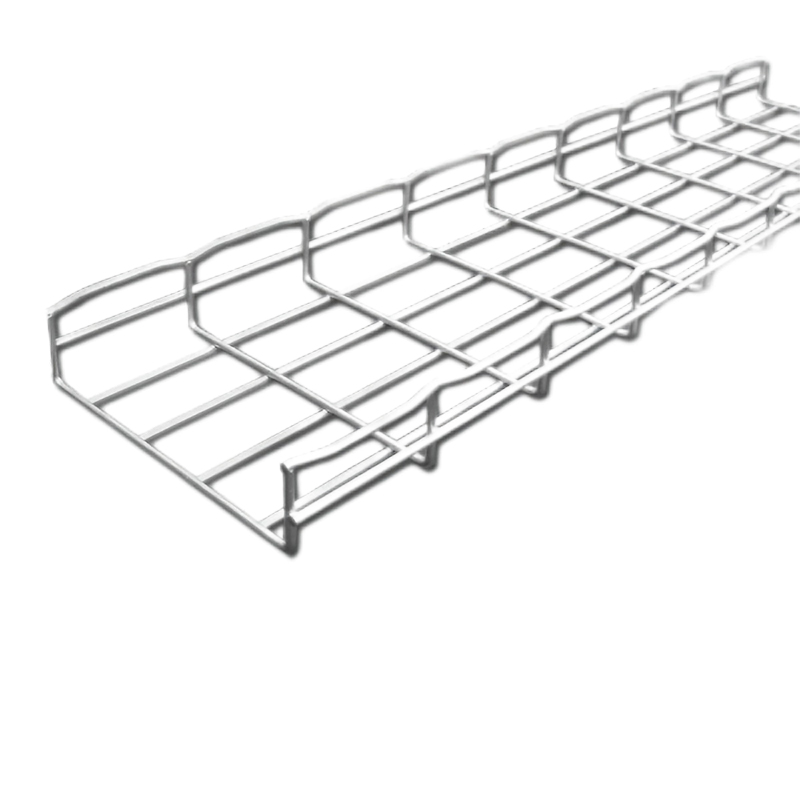

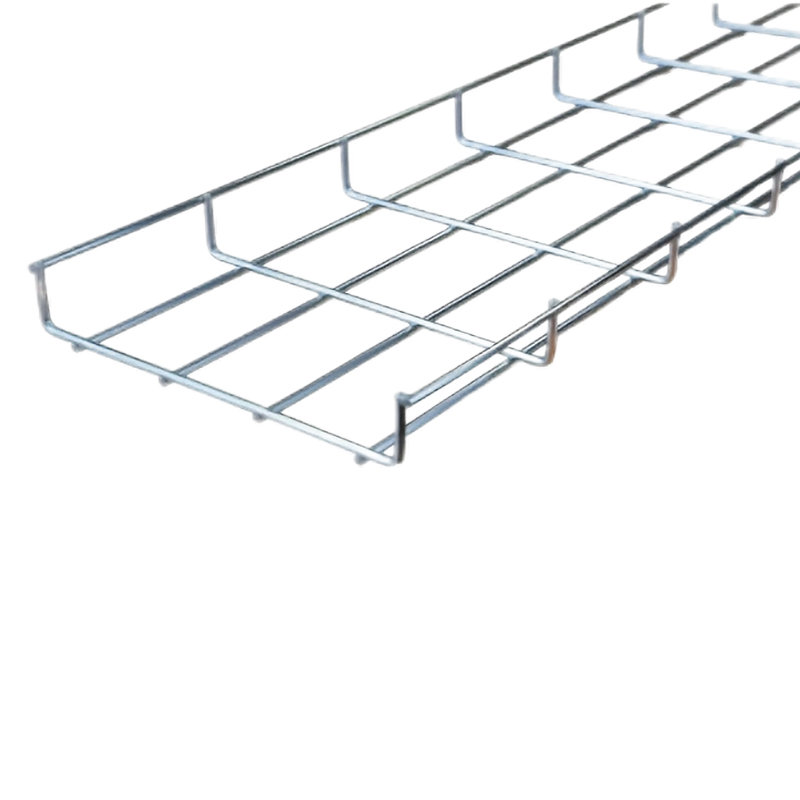

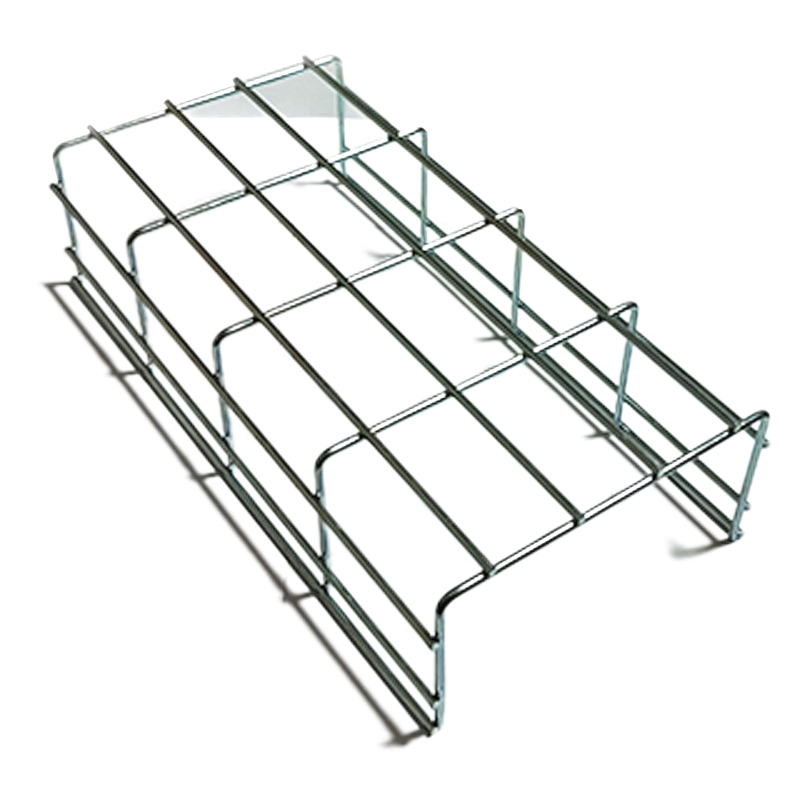

Wire Mesh Cable Tray

PRODUCT DISPLAY

  Wire Mesh Cable Tray is an open-structure cable tray, which is made of metal wires (usually steel wires or stainless steel wires) welded or woven into a grid to form a lightweight and high-strength cable support system. It is widely used in data centers, industrial plants, commercial buildings and other scenarios, especially for occasions that require high heat dissipation, flexible wiring or visual beauty.

--Open design:

  The grid structure is unobstructed, which is conducive to the natural heat dissipation of cables and avoids heat accumulation. It is suitable for high-density wiring environments (such as data centers). It is easy to observe the direction of cables and facilitate later maintenance and adding or removing lines.

--Lightweight and high strength:

  Made of high-quality steel or stainless steel, it weighs only 1/3~1/2 of the traditional bridge, but has excellent load-bearing capacity (static load can usually reach more than 50kg/m).

--Flexible wiring:

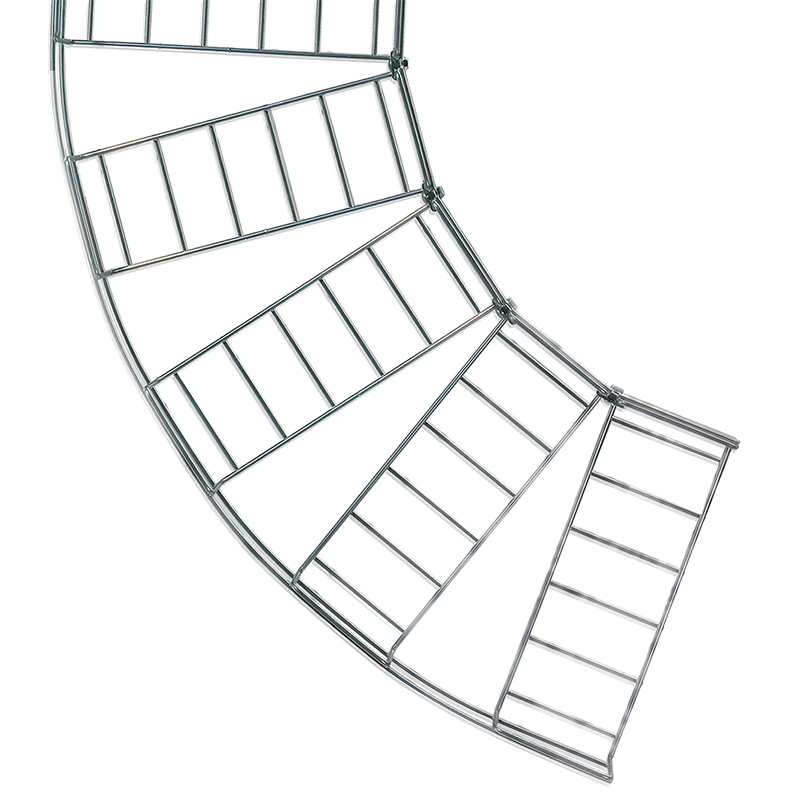

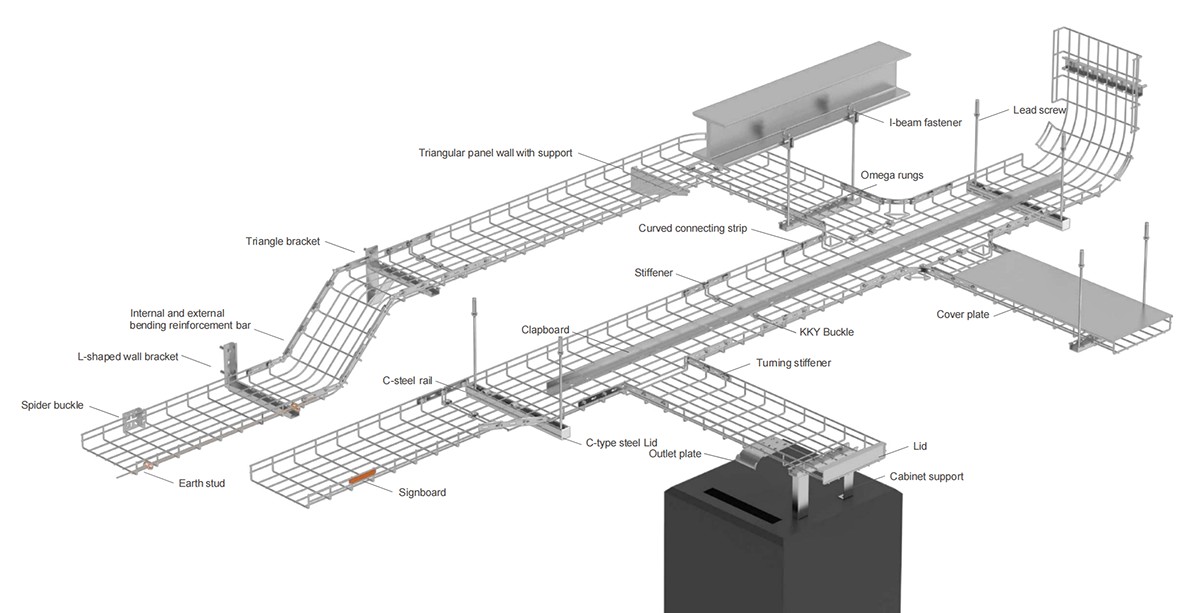

  The grid structure supports the cable outlet at any point without the need for additional holes, and is suitable for various cables (power, optical fiber, weak current, etc.). It can be matched with accessories such as junction boxes and corner pieces to adapt to complex paths (horizontal, vertical, turning, etc.)

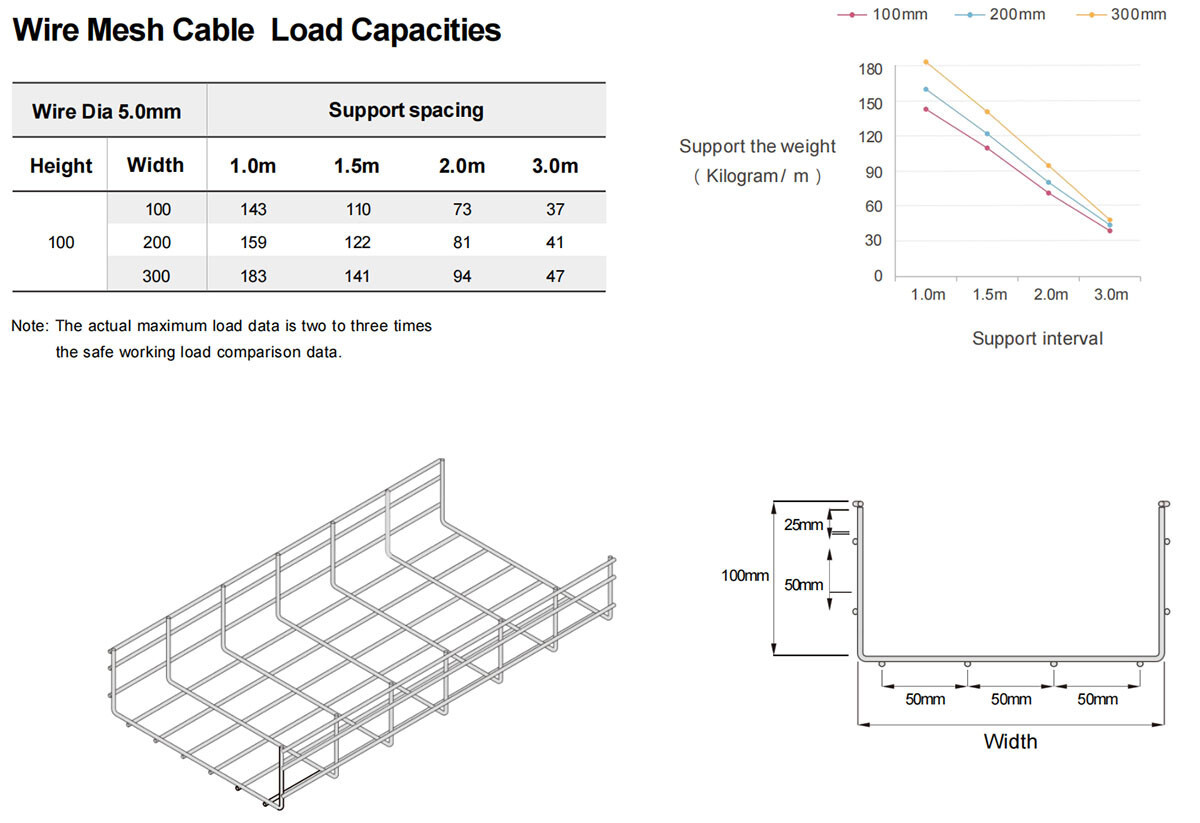

Product Specification:
